Description

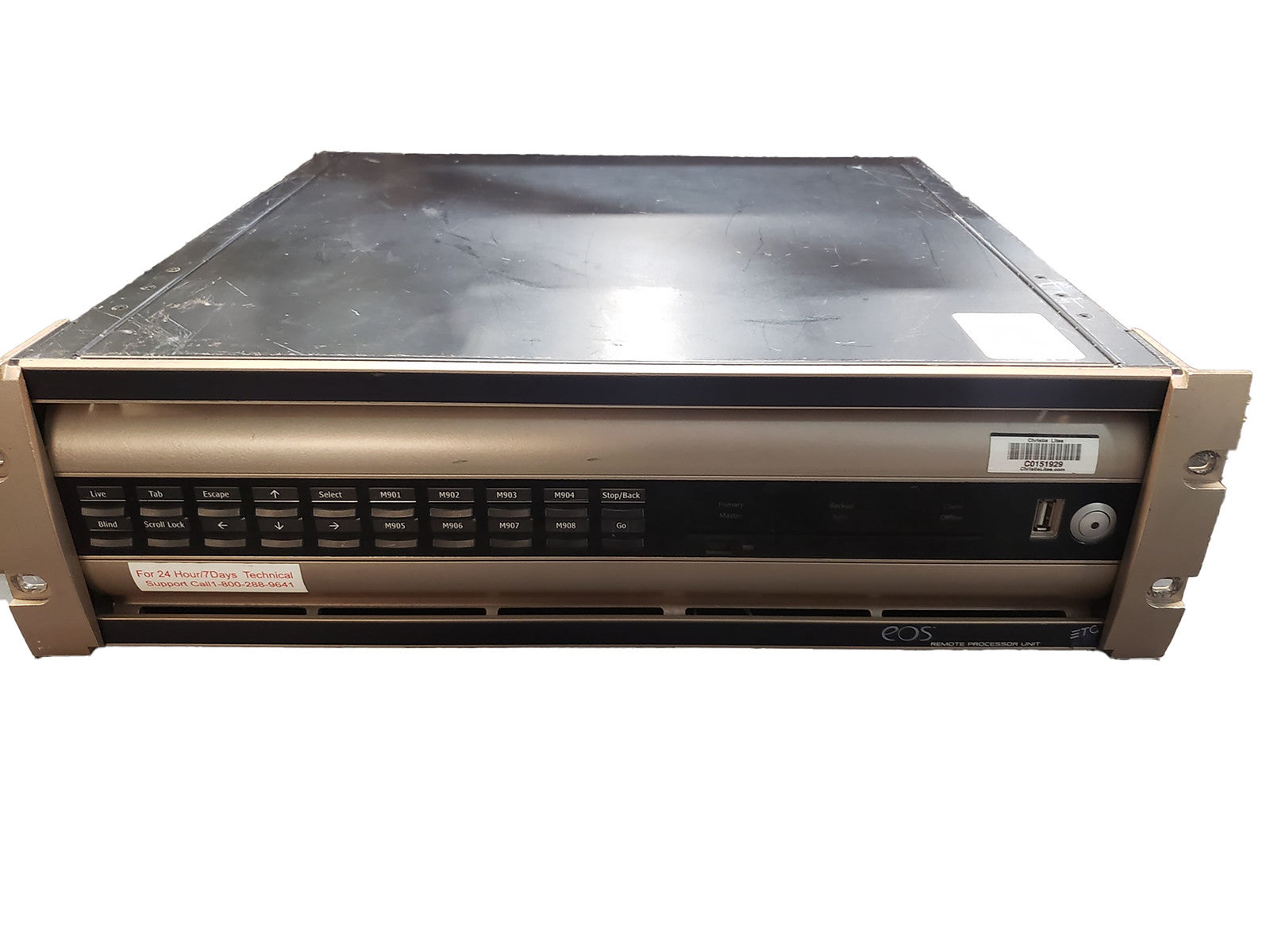

An optional main/backup processor for the Eos and Gio control
systems, the Eos RPU can also be used as a stand-alone lighting
playback controller.
Applications
• Theatre
• Television Studios
• Houses of Worship
• Corporate Theatre
• Exhibits
• Special Events
• Touring
Features
• 4096, 6144, 8192, 12,288 or 16,384 Outputs/Parameters
• 10,000 control channels
• 12 Discrete Users
• Partitioned Control
• Access to all Eos application programming functions
• 20 User programmable front panel buttons
• 6 – front panel LED status indicators
• 3U 19” Rack-mount enclosure
Interfaces
• AC Input (100 – 240 VAC at 50/60Hz)
• Ethernet (1 port) 802.3af compliant PoE
• ETCNet2, Net3, Artnet and Avab UDP
• 2 – DVI/SVGA connectors support external displays
(1280x1024 minimum resolution) with optional touch screen
control
• USB multipurpose (7 ports)
• Radio Focus Remote (RFR)
• MIDI Time Code, MIDI show control through gateway
• SMPTE Time Code through gateway
• Contact closure (12 analog intputs, 12 SPDT contact outputs,
RS-232) through gateway. If looking to pick up locally please contact us for specific availability.
