Description

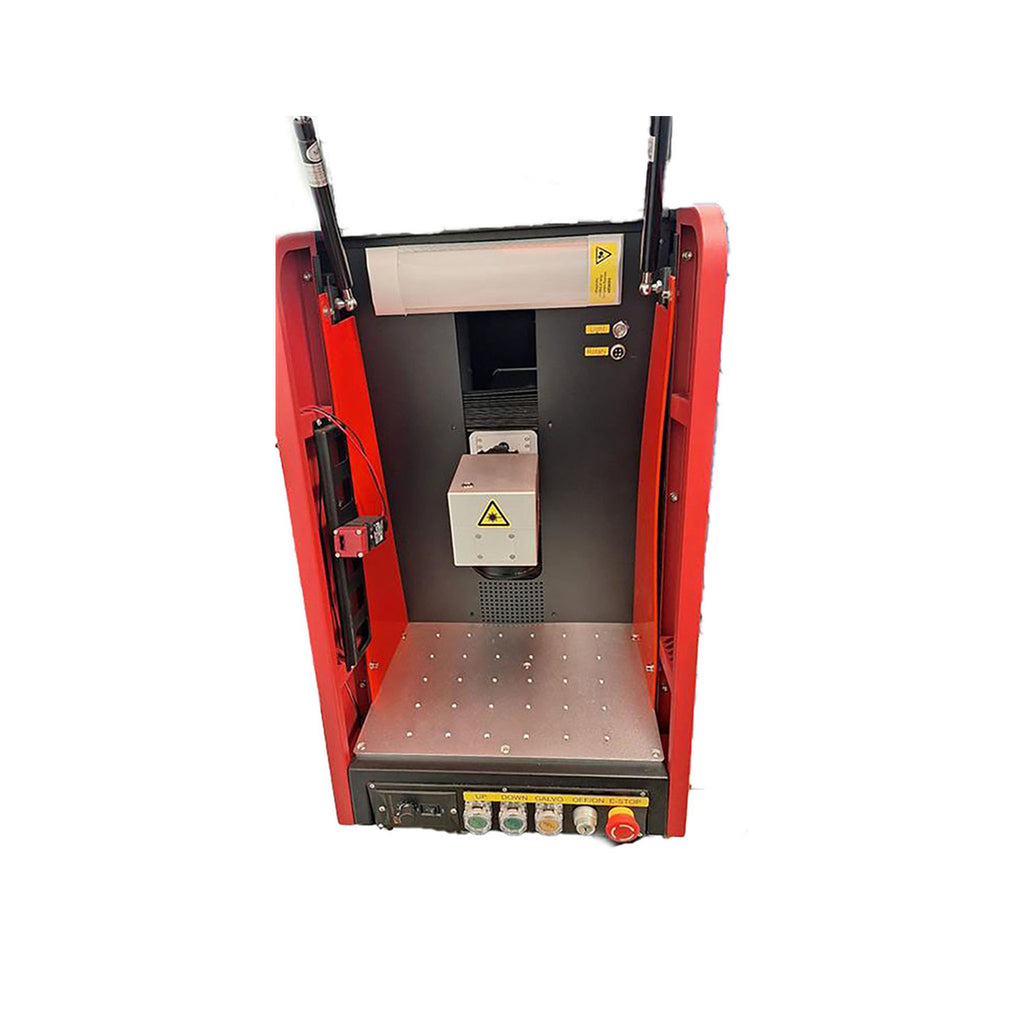

Our LSE110 compact fibre laser engraving machine cleverly bridges the commercial gap between a laser engraving and CO2 cutting machine with limited capability on uncoated metals and a more expensive customisable fibre laser engraving machine. Whilst our more expensive LS110 machine can be supplied with a custom manufactured safety enclosure to suit the size and shape of work being processed, the LSE110 has a fixed cabinet size and so is limited to smaller items, typically less than 200mm cubed. As with all of our laser machines, the LSE110 is assembled, tested and CE certified here in the UK and is capable of engraving uncoated metals directly without the need for a ceramic marking compound.
As standard it is supplied with a 110 x 110mm focus lens arrangement but we do have options for larger marking areas if this arrangement is not suitable. Please contact us if you would like to discuss your application in further detail and we can help to select the most suitable focus lens and corresponding marking area.
UK Built, Certified and Supported
All machines offered by HPC are specified, built, tested and supported by our team of highly experienced staff based in Halifax , UK. With a team of 5 nationwide engineers offering delivery, installation, training and servicing requirements throughout the UK, help is never far away.
Purchase of a HPC machine also entitles you to lifetime access to our highly rated telephone and e mail technical support.
Flexible and intuitive software
The LSE110 laser marker is supplied complete with the flexible and intuitive EZCAD software package. Please click here to learn more about the features of the software.
Features and Benefits
Protective safety enclosure with safety door switch installed
Motor driven Z axis adjustment with dual red-dot pointer arrangement for easy setting of focal height
Drilled and tapped bed offering easy fitting of jigs and optional rotary engraving devices
External fume extraction fan unit supplied with flexible hose
Multiple lens options available, typical marking areas of 110 x 110mm and 220 x 220mm
Visible laser tracing to assist with component alignment
Optional foot switch available, offering rapid component turnaround
EZCAD control software, compatible with Windows XP/7/8/10 32/64
QR and barcode compatibility
AI, DXF, DXP, LAS and PLT file compatibility
Working Accuracy: ±0.002mm
Power(W): 30W or 50W
Certification: CE (UK managed)
Min. Marking line width: 0.015mm
Max. Marking depth: 0.3mm
Marking speed: ?3000mm/s
Repeat frequency: 30KHz
