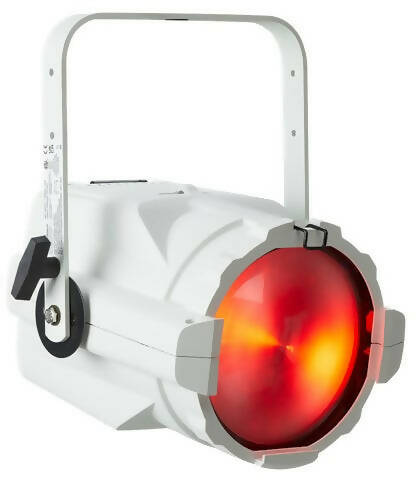

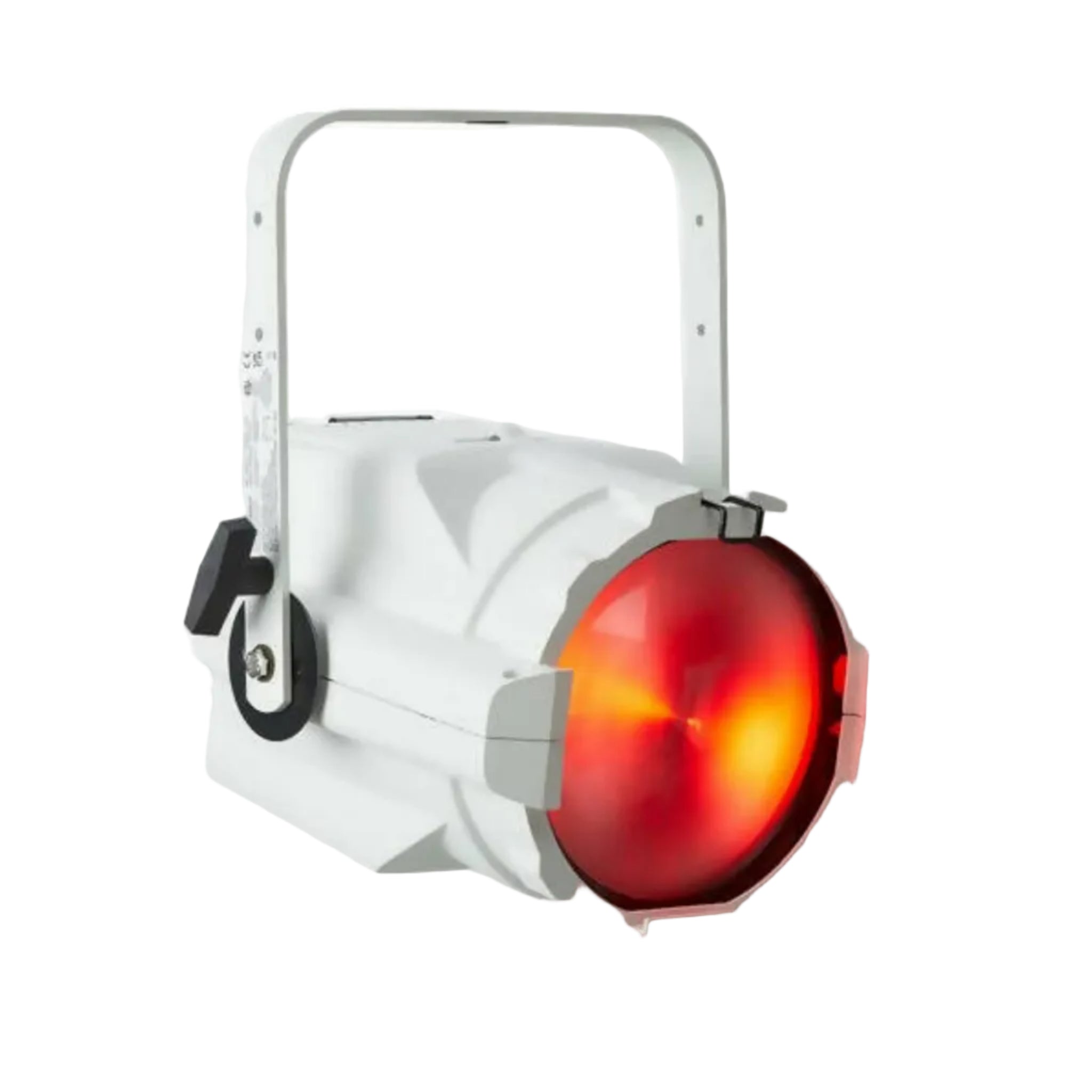

ColorSource Fresnel V XLR W/ Multiverse

An LED luminaire crafted by lighting experts with a proven history of quality fixtures, ColorSource Fresnel V brings a richness of color, increased brightness, and leading technology at a price point you’ll love. Featuring a five-color array of red, green, blue, indigo, and lime, the ColorSource Fresnel V provides soft pastels and bold saturated colors from a single fixture. Control the motorized 13°–44° zoom using DMX or manually from the rear of the fixture. ColorSource Fresnel V also features wireless DMX/RDM control using Multiverse® technology, NFC configuration from your mobile device, and next level brightness, making it the ultimate in affordable wash light technology.

FEATURES

• Five-color array (red, green, blue, indigo, and lime)
• Motorized 13–44 degree zoom with DMX and local control
• Simple user interface with seven-segment display
• powerCON® TRUE1® TOP connector
• DMX/RDM in and thru (5-pin XLR)
• Multiverse wireless DMX/RDM
• NFC (near field communication) configuration
• LED droop compensation
• Optically calibrated
• Tour-ready, aluminum housing

APPLICATIONS

• Theatres and performance spaces
• Houses of worship
• Universities and schools
• Hospitality
• Retail
• Exhibition centers
• Meeting rooms
• Clubs
• Cafetoriums

SOURCE

• LED details 44 Lumileds LUXEON® C LEDs
• Max lumens 5330
• Lumens per watt 36
• L70 rating (hours to 70% output) 54,000 hours

COLOR

• Colors used Red, Green, Blue, Indigo , Lime
• Color temperature range Color mixing
• Calibrated array

OPTICAL

• Beam angle range 13°–44°
• Aperture size 190 mm (7.48 in)
• Camera flicker control/Hz range 5,000 Hz (default) and 25,000 Hz (via RDM)

CONTROL

• Input method 5-Pin XLR, Multiverse wireless (optional), and NFC
• Protocols DMX-512, RDM, City Theatrical Multiverse (optional), NFC
• Modes (footprint) 4 modes
• RDM configuratio
• UI type Seven-segment display, three-button interface, Focus encoder
• Local control
• Onboard presets Yes (12)
• Onboard sequences Yes (5)
• FixtureLinK
• Notes 15-bit virtual dimming engine

WIRELESS

• Band 2.400–2.480 GHz
• Range 100 m indoors, 500 m line of sight (subject to conditions)
• Max receivers DMX: No limit
• RDM: Varies by transmitter used
• Multiverse SHoW Baby®: 585
• Multiverse Transmitter: 5,000
• Broadcast power 100 Mw

ELECTRICAL

• Voltage range 100–240 VAC 50/60 Hz
• Input method powerCON TRUE1 TOP power in and thru
• Inrush (first half-cycle) 120 V: 36 A, 240 V: 57 A
• Fixtures per circuit on standard R20 breaker
• 9 (link up to 8 via Power Thru connector)
• Note: TRUE1 connector rated for 20 A (120 V / 60 Hz) and 16 A (240 V / 50 Hz)
• Wattage (typical) 120 V: 148.4 W, 230 V: 147.0 W
• Current draw 120 V: 1.28 A, 230 V: 0.70 A

THERMAL

• Ambient operating temp 0°C–40° C (32°F–104° F)
• Fan (controllable) Yes (yes)
• Droop compensation
• Average dB 22.7 dBA
• BTUs/hour (120 V) 508

PHYSICAL

• Materials Cast and extruded aluminum
• Color White
• Yoke Mounting options
• IP rating IP20
• Weight 6.24 kg (13.75 lb)
• Included accessories Yoke, power cable
