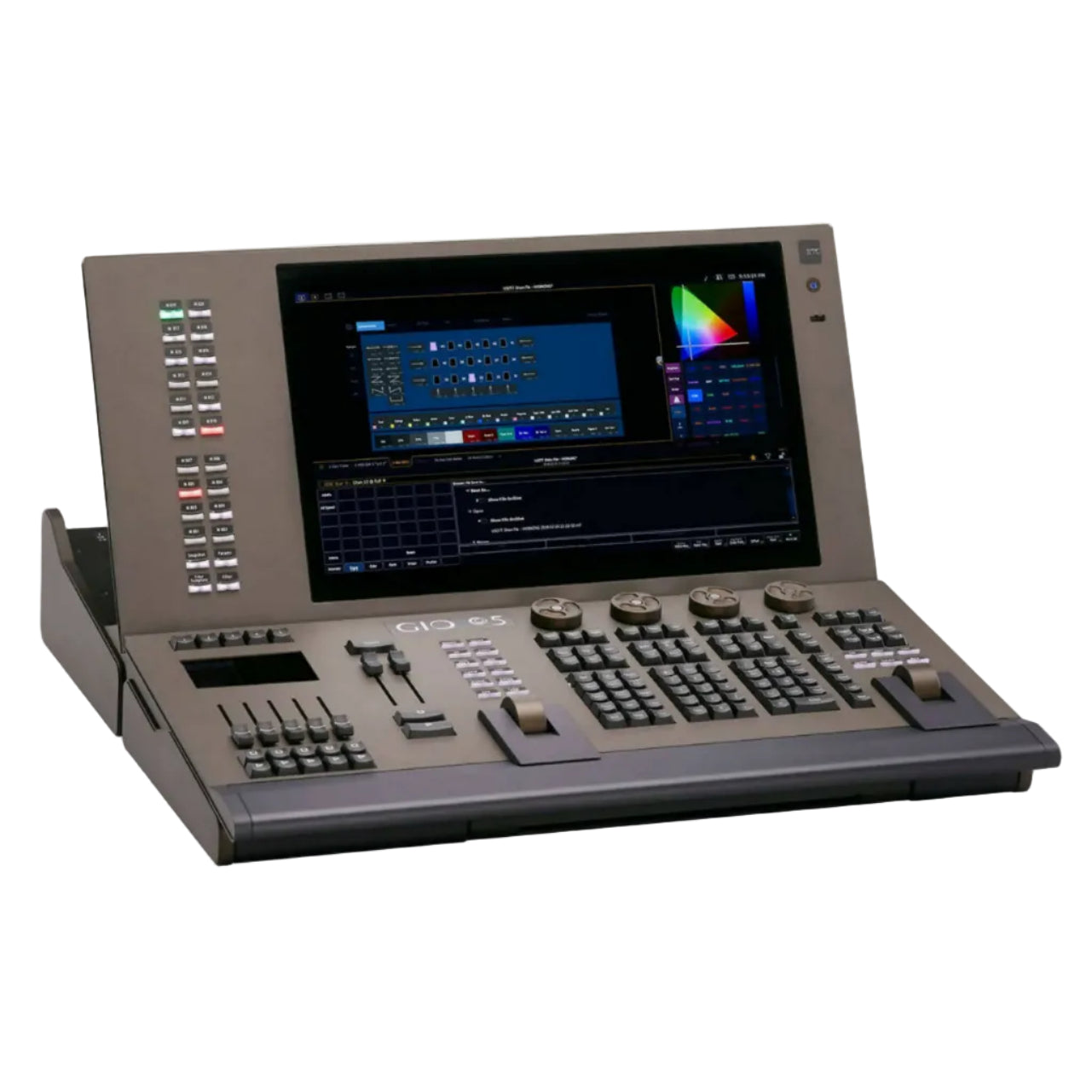

Complete control of conventional and moving lights, LEDs and media servers. Supports multiple users with partitioned parameter control and full backup, multiple playback faders and cue lists in a tracking, move-fade environment, with unique force-feedback encoders, one integral articulating multi-touch display and backlit keys.

FEATURES

• 2,048 to 32,768 outputs upgradeable in 1,024 output increments
• 16,000 control channels
• 12 discrete users
• Partitioned control
• Master playback pair with motorized 60mm faders
• Five 60mm motorised faders x 100 pages for configurable cue lists, submasters, grand masters, IFCB Palette/Presets lists or individual instances
• One 17.3 inch multi-touch LCD touchscreens for display, direct selection and context-sensitive control • Four discrete palette types (IFCB)
• Presets function as “all palette”
• Effects provide dynamic relational and absolute progressive behavior
• Central information area (CIA) accesses electronic alpha keyboard, Hue + Saturation color picker, gel picker, browser and other controls
• Four force-feedback encoders for non-intensity parameter control
• Configurable high-density channel display, with format and flexi-channel modes
• User-designed, interactive magic sheets
• Up to six abstract color spaces, tinting, spectrum and fade path tools.
• ETCNet2™ and Net3™ (powered by ACN), ArtNet and Avab® UDP output protocols
• Show import from Obsession, Express, Expression®, Emphasis®, Congo®, Cobalt®, Grand MA1, Grand MA2, Safari and Strand 500/300 Series
• Two individually configurable Ethernet ports
• Multiple MIDI and/or SMPTE TimeCode Inputs, MIDI In and Out, Analog/Serial Inputs, OSC transmit/receive
• Virtual Media Server function for pixel-mapped effects, images and animations
• Support for multiple languages, including English, German, Spanish, French, Italian, Japanese, Korean, Russian and Chinese (Simplified and Traditional)
